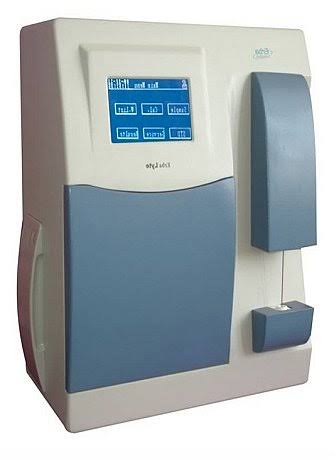

Erbalyte Pro Plus
Precision electrolyte analysis on a compact benchtop platform
- Measuring Range
- Analyte Measuring Range Precision(CV%)
- K+ 0.50 – 15.0 mmol/L 1.0%
- Na+ 30.0 –200.0 mmol/L 1.0%
- Alarms Visual alarms for Reagent inventory:
- Icon indicates the remaining reagents can run about 150 samples
- Icon indicates the remaining reagents can run about 120 samples
- Icon indicates the reagents are run out
- Series of Erba Lyte Models:
Overview
The Erbalyte Pro Plus is a high‑performance electrolyte analyzer designed for busy clinical and research settings. It delivers rapid, direct measurements of Na⁺, K⁺, Cl⁻, CO₂, Ca²⁺ and pH via ion‑selective electrode technology, ensuring reliable results across whole blood, serum, plasma and diluted urine.
With a throughput of 60 samples per hour and an intuitive touch‑screen interface, the instrument fits on a compact benchtop while providing up to 200 stored patient results and an integrated thermal printer for immediate reporting.
Key Features
- Direct ISE measurement of six electrolytes and pH
- 1‑point or 2‑point calibration with adjustable intervals
- Visual and audible reagent‑level alarms (150, 120, out)
- Large backlit LCD with touch‑screen data entry
- In‑built RS‑232 serial communication and optional auto‑sampler
- Closed reagent module with calibration solutions, waste container and thermal printer
Applications
- Routine chemistry panels in hospital laboratories
- Electrolyte monitoring in intensive care units
- Clinical research studies requiring precise ion analysis
- Teaching labs at universities and medical schools
- Quality‑control testing in blood banks
- Environmental or veterinary urine electrolyte screening
Why Choose This Product
Choose the Erbalyte Pro Plus for its blend of speed, accuracy and user‑friendly design. The analyzer’s low power consumption, robust construction, and built‑in QC statistics (mean, SD, CV%) help maintain high reliability while minimizing downtime, making it ideal for high‑throughput clinical and research environments throughout the day and laboratory operations.
Mon–Fri 8am–6pm | Sat 9am–3pm
Technical Specifications
| Principle | Direct measurement by Ion Selective Electrode (ISE) |
| Throughput | 60 samples/hour |
| Sample Type | Whole Blood, Serum, Plasma, Diluted Urine |
| Cl 30.0 | 200.0 mmol/L 1.0% |
| C02 0.10 | 500 mmol/L 2.0% |
| Ca++ 0.10 | 500 mmol/L 2.0% |
| pH 4.00 | 9.00 unit 1.0% |
| Calibration | 1 point OR 2 point calibration at adjustable time interval |
| Data Input | Touch Screen |
| Display | Large LCD with backlight |
| Data Storage | Upto 200 patient results |
| Printer | Inbuilt Thermal printer. |
| Quality Control | facility to run 2 level of Q.C Statistic report with Mean, SD & CV% for |
| Reagents | Closed reagent module containing calibration solutions and waste |
| Audible and Visual | Beep sound for completion of sample aspiration. |
| Communication | RS 232 serial port |
| Ambient Temp. | 15 – 32oC |
| Relative Humidity | ≤ 85% |
| Voltage Input | AC 220 or 110V± 10%, 50/60Hz |
| Power Consumption | 60W |
| Weight | 10Kg (instrument only) |
| Optional Accessories | Auto sampler, Barcode Reader |
| Erba Lyte | Electrolyte Analyzer with Na/K analytes |
| Erba Lyte Plus | Electrolyte Analyzer with Na/K/Cl analytes |
| Erba Lyte Li | Electrolyte Analyzer with Na/K/Li analytes |
| Erba Lyte Li + | Electrolyte Analyzer with Na/K/Cl/Li analytes |
| Erba Lyte Ca | Electrolyte Analyzer with Na/K/Ca/pH analytes |
| Erba Lyte Pro | Electrolyte Analyzer with Na/K/C02/Cl analytes |
| Erba Lyte Pro+ | Electrolyte Analyzer with Na/K/C02/Cl, Ca++, pH analytes |
Specifications are subject to change without notice. Contact Waxtron Medicals for the most current datasheet.
Clinical Use Cases & Applications
Clinical Diagnostics
Ideal for this healthcare setting.
Hospitals
Ideal for this healthcare setting.
Universities
Ideal for this healthcare setting.
Research Laboratories
Ideal for this healthcare setting.
Blood Banks
Screening and compatibility testing.
Veterinary Laboratories
Ideal for this healthcare setting.
Emergency Care
Ideal for this healthcare setting.
Clinical Applications
Shipping & Delivery Information
| Zone | States | Timeline | Base Cost |
|---|---|---|---|
| Zone 1 | FCT Abuja | 1–2 days | ₦2,000 |
| Zone 2 | Lagos, Ogun, Oyo, Osun, Ondo, Ekiti | 2–4 days | ₦5,000 |
| Zone 3 | Rivers, Delta, Edo, Cross River, Akwa Ibom, Bayelsa | 3–5 days | ₦6,000 |
| Zone 4 | Kano, Kaduna, Katsina, Sokoto, Kebbi | 2–4 days | ₦4,500 |
| Zone 5 | Enugu, Imo, Anambra, Abia, Ebonyi | 3–5 days | ₦5,500 |
| Zone 6 | All other states | 4–7 days | ₦7,000 |
* Weight-based surcharges apply for equipment above 50kg
Our Delivery Promise
Customer Reviews
For routine professional use, it has performed well enough for us to recommend it.
I particularly like the fact that it has performed well for our needs, particularly during routine work. It has been performing steadily since we started using it.
I have been particularly impressed by how it has met the expectations we had when we purchased it. It has provided the level of consistency we needed.
Our experience with the product has been positive overall because our operators have given us positive feedback about using it. The overall experience has been positive for our facility. We mainly use it for electrolyte testing.
Our laboratory has had a good experience with this product, particularly because it has performed consistently during normal daily use. The overall experience has been positive for our facility. It has been particularly useful for routine electrolyte analysis.
Since adding this to our workflow, it has been a practical choice for our facility and has supported our daily work. The learning curve was reasonable for our staff. It fits well into our workflow for routine electrolyte analysis.
Our experience during routine operation has been it has been a practical investment for our facility.
One of the better aspects of this purchase is that it has proved dependable for the type of work we do. We are comfortable recommending it for similar routine applications. Most of our usage has been around electrolyte testing.
Our facility has been satisfied with the way our staff have adapted to it well and we have been satisfied with the results. The staff feedback has generally been positive.
The team was initially interested in the specifications, but after using it, we have been pleased with the overall reliability so far. We have not experienced any major disruption to our workflow.
What stood out for our team was the operation has been straightforward for our experienced staff. Our laboratory staff have also found the workflow convenient. For our facility, electrolyte testing is one of the main applications.
What I appreciate most about this product is it has fitted comfortably into our existing workflow. So far, it has been a dependable part of our routine work. It fits well into our workflow for electrolyte testing.
There has been good consistency in it has supported our daily operations well. The day-to-day operation has been straightforward for our team.
You need to be logged in to write a review.
Login to ReviewFrequently Asked Questions
Does this equipment work with Nigerian power supply?
Yes. This equipment features a wide AC input range (100–240V, 50/60Hz), making it fully compatible with Nigerian power supply. We recommend pairing it with a quality voltage stabilizer (1.5–2 KVA) for optimal performance. Our engineers will advise on the right stabilizer during installation.
Is installation really free?
Yes, absolutely. Every equipment purchase from Waxtron Medicals includes free delivery to your facility, installation, commissioning, and operator training — all at no extra cost. Our biomedical engineer visits your site and stays until the equipment is fully operational and your staff are trained.
What warranty is included?
All equipment carries a 12-month comprehensive warranty from the date of installation. This covers manufacturing defects and component failures under normal use conditions. Warranty service is performed at your facility by Waxtron's biomedical engineers — you do not need to ship the equipment anywhere.
Can I pay in instalments?
Yes. We offer 0% instalment plans for 3–6 months (minimum 30% deposit). For purchases above ₦5 million, we offer bank-backed financing for up to 24 months through our banking partners. Monthly payments for this product start from ₦1,657,500. Visit our Financing page or speak to our team for details.
Do you supply the reagents for this equipment?
Yes. We supply all compatible reagents, calibrators and controls. We recommend setting up a reagent supply agreement with Waxtron for scheduled deliveries and fixed pricing — ensuring you never experience stock-outs that disrupt lab operations.
How long does delivery take to my state?
FCT Abuja: 1–2 business days. Lagos/PH: 2–4 days. Northern states: 2–4 days. South East/South South: 3–5 days. Remote northern states: up to 7 days. Use the shipping calculator on this page for a specific estimate for your state.
What happens if the equipment breaks down?
Call or WhatsApp us at +234 706 756 4166 immediately. Many issues can be resolved remotely. For hardware faults, our engineer will visit within 24–72 hours (Abuja) or 2–5 business days (other states). We carry common spare parts and maintain OEM parts stock for all equipment we sell.
Is Waxtron Medicals NAFDAC registered?
Yes. Waxtron Medicals Ltd is a NAFDAC-registered medical device supplier. We can provide full NAFDAC and regulatory documentation for your facility records, NHIA accreditation applications, or government procurement submissions.
