Abacus 380 Haematology Analyzer
High-throughput haematology analyzer with 20-parameter panel
Overview

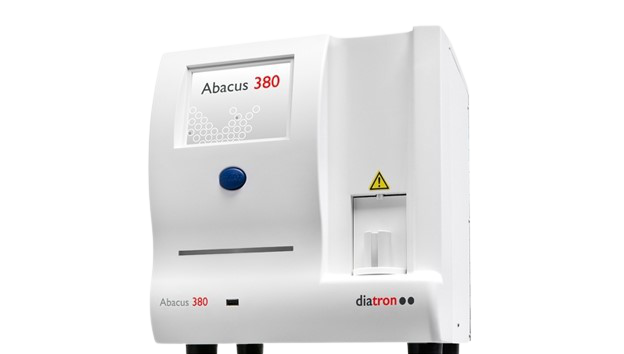

The Abacus 380 is a compact haematology analyzer designed for high‑throughput environments. It requires only 25 µl of whole blood and delivers a full 20‑parameter panel, including a three‑part differential, in a single run.

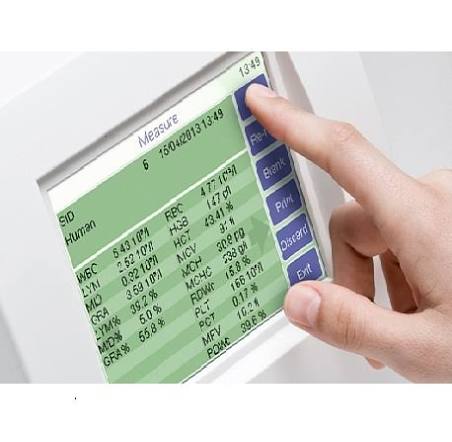

A touch‑screen, menu‑driven interface guides the operator through sampling, analysis, and result review. Results are stored for up to 1,000 patients and can be exported via USB or printed instantly on the built‑in thermal printer.
Key Features
- 20 haematology parameters with 3‑part differential (WBC, RBC, PLT, etc.)
- Throughput of up to 80 tests per hour
- Minimal sample volume of 25 µl using open‑tube rotor
- Dual‑chamber aperture design with high‑voltage clog‑prevention
- Automatic and manual calibration for critical parameters
- Multi‑language touchscreen UI and USB connectivity for data backup and software upgrades
- Built‑in 58 mm thermal printer with full reports and histograms
Applications
- Routine hematology testing in hospitals
- Sample analysis in diagnostic laboratories
- Teaching and research in university biomedical departments
- Clinical studies in research institutes
- Blood screening and inventory in blood banks
- Public health monitoring for government health agencies
- Outpatient and private clinic diagnostics
Why Choose This Product
The Abacus 380 combines speed, precision, and ease of use in a footprint that fits any lab. Its robust clog‑prevention technology ensures uninterrupted operation, while the comprehensive 20‑parameter panel supports accurate patient management. Integrated data handling and multilingual support make it adaptable for diverse clinical settings, delivering reliable results without compromising workflow efficiency.
Mon–Fri 8am–6pm | Sat 9am–3pm
Technical Specifications
| • Sample Volume | Sample volume 25µl of whole blood in normal 3-part mode |
| • Parameters | 20 hematology parameters, including 3-part differential: WBC, LYM, MID, GRA, LYM%, MID%, GRA%, RBC, HCT, MCV, RDW, HGB, MCH, MCHC, PLT, PCT, MPV, PDW, P-LCC, P-LCR |
| • Chambers | 2 chambers, 70µm aperture in RBC chamber/100µm in WBC chamber |
| • Reagent System | Isotonic Diluent, Lyse, Cleaner |
| • Aperture Diameter | 70µm (RBC/PLT); 100µm (WBC) |
| • Throughput | 80 tests/hour |
| • Sampling Method | Open tube system with automatic sample rotor |
| • Sample Types | Human, male, female, baby, toddler and child |
| • Clog Prevention | High-Voltage pulse on aperture in each analysis cycle and high pressure back-flush of the aperture. |
| • Cleaning Procedure | High voltage burst of the aperture, high-pressure back-flush, chemical cleaning of the aperture. |
| • Calibration | 1 or more measurement automatic and manual (factors) calibration of WBC, HGB, RBC, PLT, MCV (or HCT), RDW, and MPV. |
| • User Interface | Easy-to-use, menu driven user interface with touch-screen and separate START button, status LED |
| • Languages Available | English, Spanish, Portuguese, French, Russian, Indonesian, German, Italian |
| • Data Capacity | 1000 results, including RBC, PLT, and WBC 3-part histogram |
| • Host Computer Interface | USB B Port |
| • Data Back-Up Method | USB mass storage device |
| • Software Upgrade Method | Via USB A port using USB mass storage device |
| • Printer Interface | USB with support for HP printers (Deskjet, LaserJet, PCL3, PS, LIDIL). |
| • Built-in-Printer | Thermal printing module, 58mm wide roll paper, full report with histograms. |
| • Display | 320x240-dots, high-contrast, backlit, color graphics LCD (liquic Crystal Display) |
| • External Keyboard | USB keyboard |
| • Power Requirement | 12VDC, 5A, 60W max. operating power |
| • Operating Temperature | 15-300C (59-860F). Optimal temperature is 250C (770F) |
| • Dimensions (WxDxH) | 320x260,365mm; (12.6 x 10.2 x 14.4 in) |
| • Net weight | 12kg |
Specifications are subject to change without notice. Contact Waxtron Medicals for the most current datasheet.
