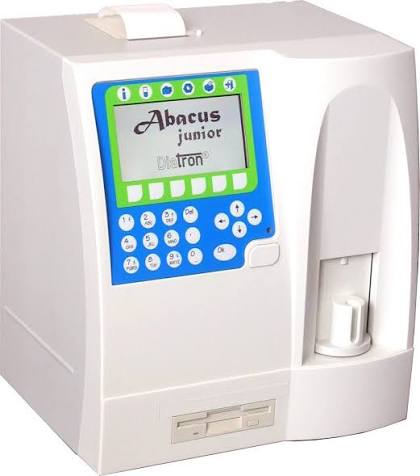

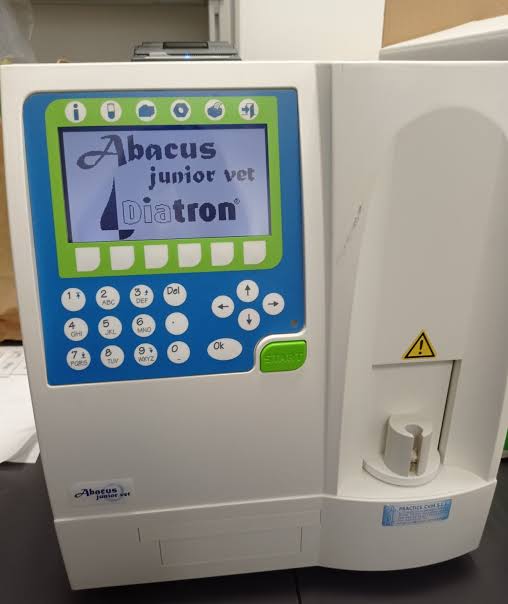

Abacus Junior Vet 5
Compact 5‑part hematology analyzer for fast veterinary diagnostics.
Overview
The Abacus Junior Vet 5 delivers reliable, full-spectrum hematology testing for veterinary practice. Designed for small to medium‑sized labs, it handles 25‑50 µL whole‑blood samples in both 3‑part and 5‑part modes.
With an intuitive menu‑driven interface, integrated USB printer and multilingual support, the analyzer fits seamlessly into busy clinical workflows while maintaining precise results across 22 parameters.
Key Features
- 22‑parameter panel including a 5‑part WBC differential.
- Sample volume as low as 25 µL for 5‑part mode.
- Throughput of 22–28 tests per hour in 3‑part mode.
- Automatic or manual calibration with six QC reagent lots.
- Built‑in Seiko thermal printer and optional USB data upgrade.
- Multi‑user mode with serial and USB interfacing.
- Storage for 1,000 results (expandable to 10,000) with histograms.
- Open‑tube sampling and automatic rotor for hands‑free loading.
Applications
- Routine complete blood counts in companion animal clinics.
- Hematology screening for equine and livestock health programs.
- Research projects requiring precise differential counts in rodents and exotic species.
- Diagnostic labs supporting veterinary pathology services.
- University teaching labs for veterinary hematology education.
- Blood bank quality control for animal blood products.
- Government animal health surveillance programs.
Why Choose This Product
Choose the Abacus Junior Vet 5 for its compact footprint, low sample requirement, and comprehensive 22‑parameter analysis. The analyzer’s robust QC system, flexible user profiles, and easy data management reduce turnaround time while ensuring accuracy. Its durable construction and multilingual interface make it ideal for diverse veterinary environments, from private clinics to large research facilities.
Mon–Fri 8am–6pm | Sat 9am–3pm
Technical Specifications
| • Sample Volume | 25/50 µl of whole blood in 3/5-part mode |
| • Measured parameters | 22 parameters, including 5-part WBC differential: WBC, LYM, MON, NEU, EOS, BAS, LYM%,MON%,NEU%,EOS%,BAS%, RBC, HCT, MCV,RDW, HGB, MCH, MCHC, PLT, PCT, MPV, PDW. |
| • Reagents | Isotonic diluents, lyse, Diff Vet 5, cleaner and rinse |
| • Throughput | 22-28 tests/hour in 3-part mode |
| • Sampling Method | Open tube system with automatic sample rotor |
| • Sample profiles | -in 5-part mode: Dog, cat, horse, Control blood |
| • -in 3-part mode | Dog, Cat, Horse, cattle, Pig, Mouse, Rat, Rabbit Ferret, Chimp, Sheep, Goat and user-defined profiles. |
| • Calibration | Automatic or Manual |
| • Quality Control | 6 lots |
| • Software Upgrade | USB |
| • Data Storage Capacity | 1000 (2000/10000 optional) result, including histograms |
| • Built-in printer | Seiko “Easy Paper Operation” thermal printer, 56mm wide roll paper (optional) |

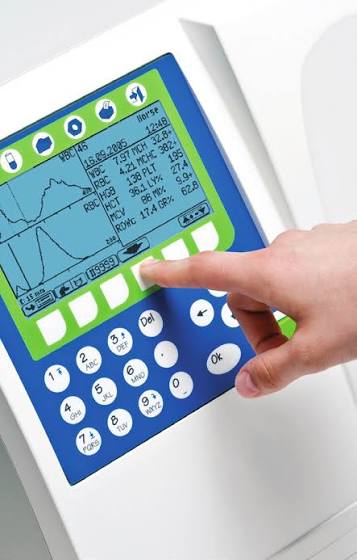

| • User interface | Easy-to-use, menu driven user interface with 6 software buttons (with icons), 6 hardware function buttons, cursor and numeric keys. |
| • Dimensions (WxDxH) | 320x260x365mm |
| • Net weight | 12kg |
| • User Language | Multilingual user interface |
| • Operating Mode | Multi User Mode |
| • Interfacing Capabilities | Serial Port, USB |
| • Size | 320x260x365mm |
| • Operating Environment | Temperature: 15-350C, Relative Humidity: max 80% |
| • (Non | condensing) |
Specifications are subject to change without notice. Contact Waxtron Medicals for the most current datasheet.
Clinical Use Cases & Applications
Veterinary Laboratories
Ideal for this healthcare setting.
Animal Hospitals
Ideal for this healthcare setting.
Research Institutes
Ideal for this healthcare setting.
Universities
Ideal for this healthcare setting.
Diagnostic Laboratories
Ideal for this healthcare setting.
Blood Banks
Screening and compatibility testing.
Government Health Agencies
Ideal for this healthcare setting.
Private Clinics
Ideal for this healthcare setting.
Clinical Applications
