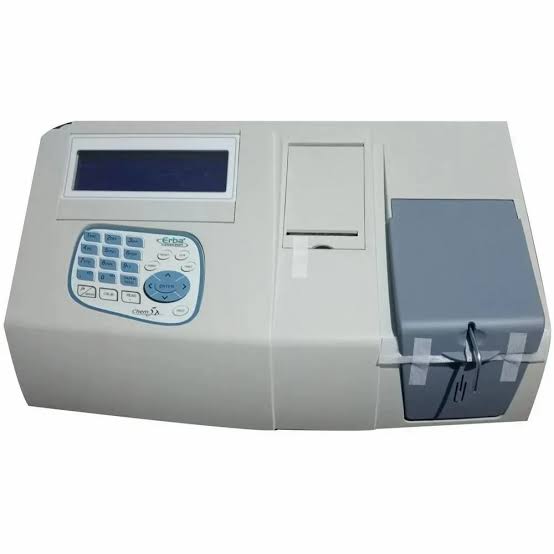

Chem 5V3 Chemistry Analyzer
Versatile chemistry analyzer for precise, low‑volume clinical testing
- Unique Features of Chem 5V3:
- 150 Open Programmable Test Memory
- Dual Cuvette Facility
- Low Volume Flowcell for low reagent/Test
- Extensive Q.C. Program and Memory facility
- Universal Power Adaptor for ease of us
- Printer
- Calibration Curves; Cubic Spline, Point to Point
Overview
The Chem 5V3 Chemistry Analyzer delivers reliable, high‑throughput clinical chemistry testing for hospitals, diagnostic labs, universities and research institutes. Its compact footprint and universal 18 V power adaptor make it ideal for both central labs and point‑of‑care settings.
Equipped with ten assay modes—including absorbance, linear and non‑linear calculations—the analyzer supports up to 150 open‑programmable test parameters. Dual cuvette capability, low‑volume flowcell (18 µL/33 µL) and a peristaltic pump provide flexible reagent use while maintaining precise results across six selectable wavelengths.
Key Features
- Ten versatile assay modes with monochromatic and bi‑chromatic measurement options.
- Dual cuvette system: flow cell and manual polystyrene cuvette for flexible sample handling.
- Low‑volume flowcell (18 µL/33 µL) reduces reagent consumption and cost per test.
- Programmable aspiration volume (300‑999 µL) via peristaltic pump for diverse sample types.
- Extensive memory: 150 QC curves, calibration curves, and storage for 1,000 test results.
- Graphic LCD, internal/external printer and RS‑232/parallel interfaces for seamless data management.
Applications
- Routine clinical chemistry panels in hospital laboratories.
- Biochemical research assays in university and research institute labs.
- Quality control verification for blood bank testing.
- Drug metabolism and pharmacokinetic studies in pharmaceutical labs.
- Environmental monitoring of water and soil samples.
- Educational demonstrations in biomedical engineering curricula.
Why Choose This Product
Choosing the Chem 5V3 means investing in flexibility, precision and efficiency. Its open‑programmable test library adapts to evolving protocols, while the dual cuvette design streamlines workflow. Robust memory and comprehensive QC tracking ensure data integrity, and the compact, lightweight design fits into space‑constrained environments without sacrificing performance.
Mon–Fri 8am–6pm | Sat 9am–3pm
Technical Specifications
| No of Test Parameters | 150, Open user programmable |
| Assay Modes | 10 |
| Measurement Modes | Monochromatic/Bi-chromatic |
| Flowcell Temperature | 25” C, 30o C, 37o C, by Peltier control |
| Type of Cuvettes | Dual Cuvette (Flow cell and Polystyrene manual cuvette) |
| Flow cell volume | 18 ul/33ul (optional) |
| Aspiration volume | 300-999 ul (user programmable) using peristaltic pump |
| Wavelengths | 340,405,505,546,578,630nm |
| Display | 240 x 64 Graphic LCD display |
| Printer | External and Internal |
| Interface port | RS 232 c Serial interface & Centronics parallel port for external |
| Memory Storage | 150 Q.C. curves and Calibration Curves and 1000 Test Results |
| Daily Quality Control | Two levels of control for each test for last 31 days |
| Power Supply | External 18 VDU Universal SMPS Adaptor |
| Dimension | Approx 172 (H) X 445 (W) X 312 (D) mm |
| Weight | Approx 5kg |
Specifications are subject to change without notice. Contact Waxtron Medicals for the most current datasheet.
