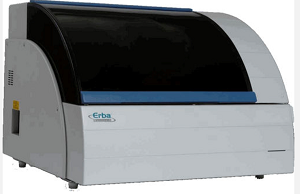

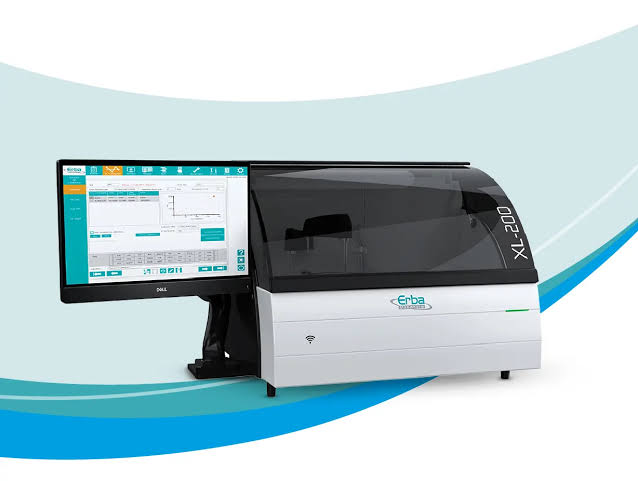

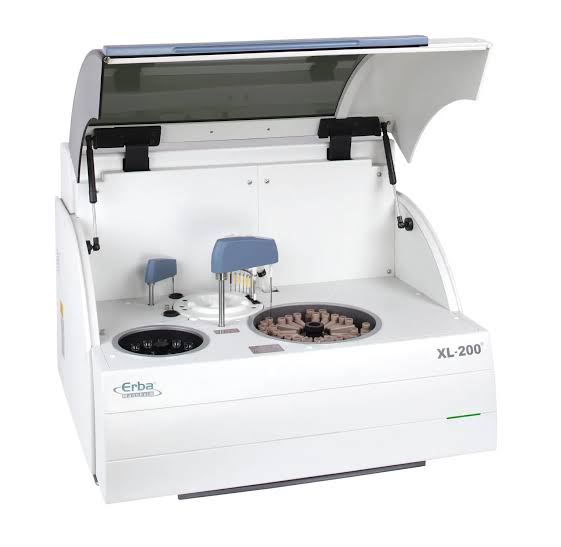

ERBA XL-200 Fully Automated Chemistry Analyzer with ISE
High‑volume chemistry analysis with optional electrolyte testing
Overview
The ERBA XL‑200 is a fully automated, random‑access chemistry analyzer designed for high‑throughput clinical environments. Its open, discrete architecture supports up to 200 photometric tests per hour, rising to 400 when the optional ISE module is engaged, ensuring rapid turnaround for a broad test menu.
The system combines a static halogen‑lamp photometer with eight interchangeable filters spanning 340‑700 nm, a high‑precision B‑silicon photodiode detector, and dedicated ISE channels for Na, K⁺, Cl⁻ and Li⁺. Integrated QC plotting, six‑stage cleaning and a robust Windows‑based interface make routine operation reliable and user‑friendly.
Key Features
- 200 photometric tests per hour (400 with optional ISE)
- Open, random‑access architecture with patient‑prioritized queuing
- Up to 50 photometric parameters plus 4 ISE channels on board
- Adjustable pipetting: 2‑70 µL sample (0.1 µL steps) and 10‑200 µL reagent (1 µL steps)
- Static photometer with 8 filters (340‑700 nm) and 0‑3 AU absorbance range
- Integrated QC plotting with automatic rule verification
- Six‑stage cleaning, two‑stage drying and cuvette validation
- Low water consumption (7.5 L/h) and hibernate mode for lamp/pump longevity
Applications
- Hospital central laboratories
- Diagnostic and reference laboratories
- University and research institute laboratories
- Blood banks and transfusion services
- Government health agencies
- Private clinical laboratories
- Clinical chemistry service centers
- Research and development labs
Why Choose This Product
Choosing the XL‑200 provides a rare blend of speed, flexibility and reliability. Dual‑mode throughput, an extensive test menu, built‑in quality‑control tools and a robust cleaning cycle minimize downtime and ensure accurate results for high‑volume clinical and research environments.
Mon–Fri 8am–6pm | Sat 9am–3pm
Technical Specifications
| • Throughput | 200 photometric tests per hour and 400 tests per hour with ISE* (Optional ISE with Na, K+, Cl-, Li+) |
| • System Type | Discrete, Open Automated, Random Access, Patient Prioritized Clinical Chemistry Analyzer |
| • Onboard Parameters | upto 50 + 4 ISE |
| • Sample Type | Serum, Plasma, Urine, CSF, HbA1c using Whole Blood |
| • Programmable Parameters | Unlimited |
| • Analytical Methods | 1-Point, 2-Point, Rate-A, Rate-B, Direct Potentiometry |
| • Calibration | Linear, Non-Linear, Multipoint |
| • Photometer | Static Photometer |
| • Absorbance Range | 0-3.0 Absorbance |
| • Light Source | Halogen Lamp 12V/20 W |
| • Optics | 8 Filters (340-700nm) 340, 405, 505,546,578,600,660,700nm |
| • Director | B Silicon photo diodes |
| • Sample Unit | 39 positions for samples/blank/calibrator/control & STAT sample. |
| • Reagent Unit | 50 cooled reagent positions |
| • Quality Control | QC Plot and data with QC rules |
| • Reaction Tray | 45 Hard Glass Cuvettes |
| • Reaction Liquid Mixing | Stirrer with variable speed mixer |
| • Reading Volume | 180µl |
| • On Board Laundry | 6 stage cleaning, 2 stage drying with cuvette validation step |
| • Sample Pipetting | 2-70 µl (Adjustable in 0.1µl) |
| • Reagent Pipetting | 10-200µl (Adjustable in 1µl) |
| • PC Configuration | OS-Windows 7 embedded or higher, CPU-P4 or higher, RAM 2GB, HDD-80GB, USB connectivity |
| • Power Supply | AC 110 V. +/-10% 60+1 Hz or AC 220V + 10%, 50+ Hz. (Factory Set) 600VA |
| • Water Consumption | Upto 7.5 Liters per hour |
| • Hibernate | Enhances Lamp life and Pump life |
| • Dimensions | 810 mm (W) x 800mm(D) x600mm (H) |
| • Weight | 130Kg |
Specifications are subject to change without notice. Contact Waxtron Medicals for the most current datasheet.
