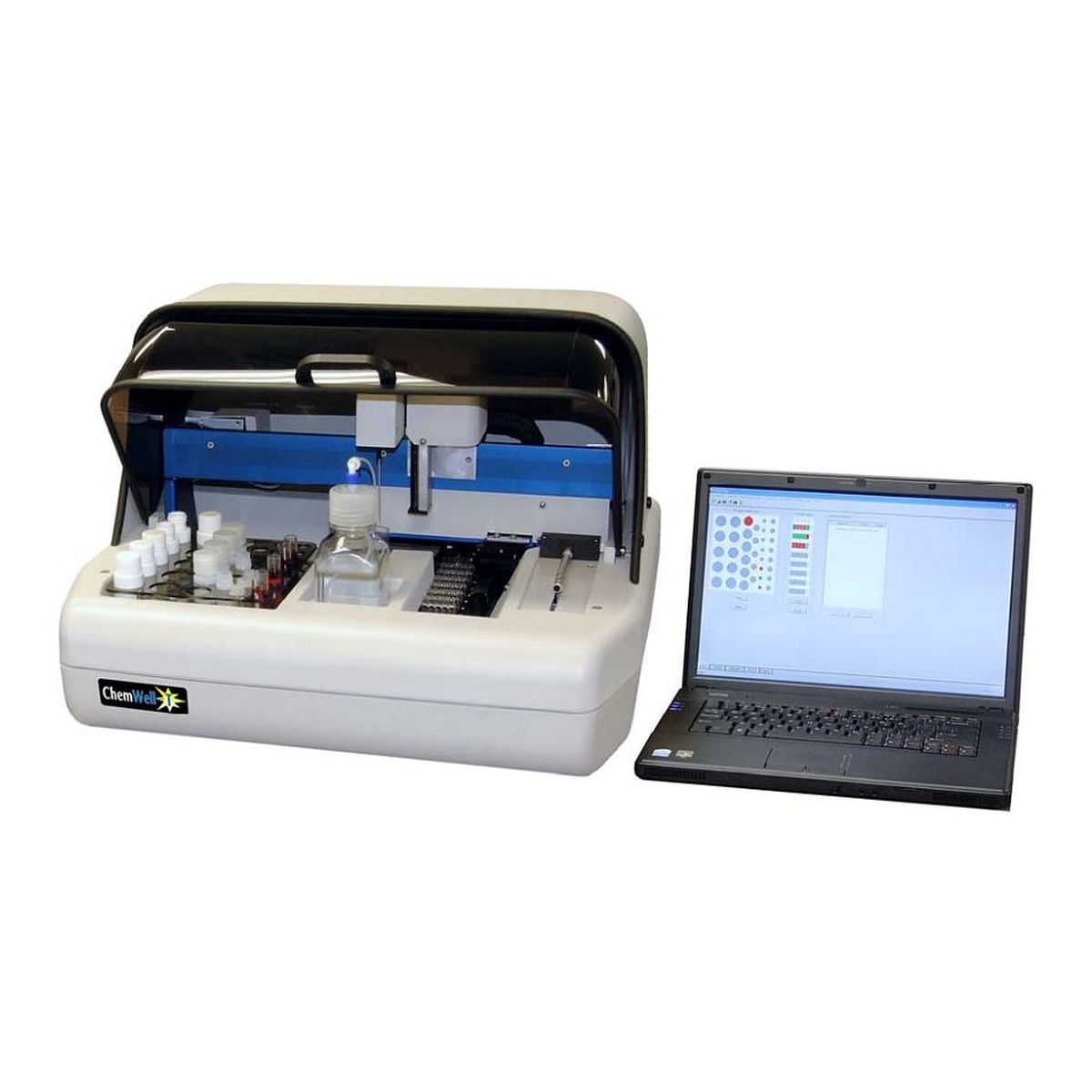

Chemwell Fusion
Versatile analyzer delivering precise multi-wavelength results with integrated washing.
- USB port and cable supplied
Overview
The Chemwell Fusion is a high-performance, multi-mode analyzer designed for hospitals, diagnostic laboratories, universities and research institutes. Its modular architecture accommodates a removable rack for up to 96 serum vials or twelve 75 mm tubes, providing rapid sample loading and effortless change-over between assays.
The system supports standard 96-well microplates and strip trays in clear or opaque format, eight-probe strip washing with dual onboard buffers, and a broad wavelength selection from 340 nm to 700 nm (customizable). Integrated USB connectivity, on-board calibrators and advanced curve-editing tools streamline workflow while maintaining a linear range to 10⁶ RLU and detection limits as low as 1×10⁻²¹ mol.
Key Features
- Removable rack holds 96 serum vials or 12 × 75 mm tubes.
- Compatible with 96-well microplates and strip trays, clear (ELISA) and opaque (chemiluminescent) options.
- Eight‑probe strip washer with two onboard wash buffers for efficient cleaning.
- Wavelength flexibility: 340, 405, 450, 505, 545, 600, 630, 700 nm or custom.
- High sensitivity detection (ALP 1×10⁻²¹ mol) and linear range up to 10⁶ RLU.
- Long‑life IAD filters and cross‑talk below 2.5×10⁻⁴.
- Precise volume handling from 2 µL to 1.95 mL with <2 % CV.
- USB port with cable and on‑board calibrator curve storage/editing.
Applications
- Clinical chemistry and immunoassay testing.
- ELISA and chemiluminescent assay development.
- Routine laboratory diagnostics in hospitals.
- Academic teaching and research projects.
- Blood‑bank screening and serology.
- Government health surveillance programs.
- Pharmaceutical and biotech research.
- Private clinic point‑of‑care laboratories.
Why Choose This Product
Choosing the Chemwell Fusion gives laboratories a versatile platform that combines robust sample handling, extensive wavelength coverage and precise liquid‑handling accuracy in a compact footprint. Its built‑in washing system, long‑life filters and USB connectivity reduce maintenance and simplify data transfer, while flexible calibrator options support both single‑point and multi‑point QC, ensuring reliable results across diverse applications.
Mon–Fri 8am–6pm | Sat 9am–3pm
Technical Specifications
| • Samples | Removable rack holds 96 serum vials or 12x75mm tubes, pre- |
| • dilution on | board |
| • Reagents | The standard rack holds 27 various size bottles, optional alternate |
| • Reaction Plate | Standard 96-well microplates or strip trays - clear for ELISA and opaque white for Chemiluminescent |
| • Linear Range | 0.0 to 3.0A |
| • Filters | long-life IAD |
| • Wavelengths | 340,405,450,505,545,600,630,700 or custom |
| • Sensitivity/Detection Limit | ALP 1x10-21 moles |
| • Linear range | to 106 RLU |
| • Cross talk | Less than 2.5 x 10-4 |
| • Volumes | from 2uL to 1.95 mL with precision better than 2%CV, single and |
| • Probe | detects liquid surface, automatic washing and rinsing |
| • Strip Washer | 8-probe manifold, two wash buffers on board |
| • Dimensions | 86cm W x 51cm L x 40cm H, approx. weight = 35kg |
| • Power | 100 - 250 VAC, 50-60 Hz |
| • Single and multi-calibrator | Curve storage |
| • Linear and point-to-point | Curve editing |
| • Linear and non-regressions | Levy-Jennings plots |
| • Log-logit, cubic spline | Cutoff calculations |
Specifications are subject to change without notice. Contact Waxtron Medicals for the most current datasheet.
