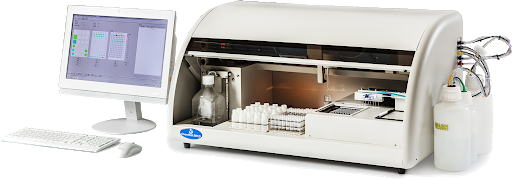

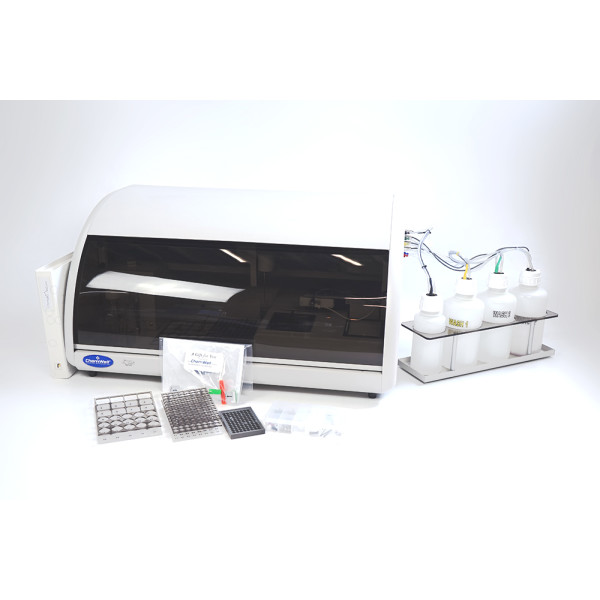

Chemwell 2910 Fully Automated Elisa System
High-throughput automated ELISA processing for precise immunoassays
- FEATURES:
- Liquid sensing probe tip
- LIS, STAT
- QC tracking
- Reaction Volume
Overview
The Chemwell 2910 is a completely open, fully automated ELISA platform that simplifies assay programming. Users can configure routine runs, quality‑control checks, panels, and index calculations, with the flexibility to adjust wash volumes, add extra washes, or program probe‑cleaning steps.
Delivering up to 200 tests per hour, the system operates at ambient temperature or a controlled 37 °C incubator, ensuring accurate kinetic reactions. A temperature‑controlled probe and liquid‑sensing tip provide precise reagent delivery, achieving high precision even with 2 µL samples.
Key Features
- Liquid‑sensing probe tip with 37 °C temperature control

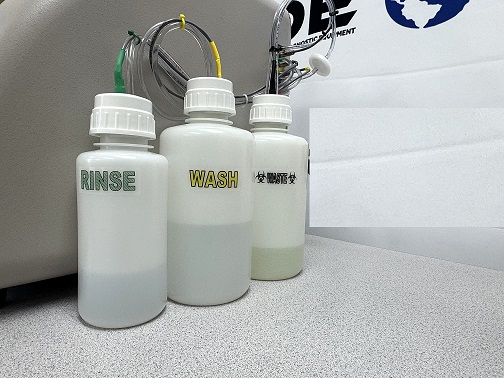

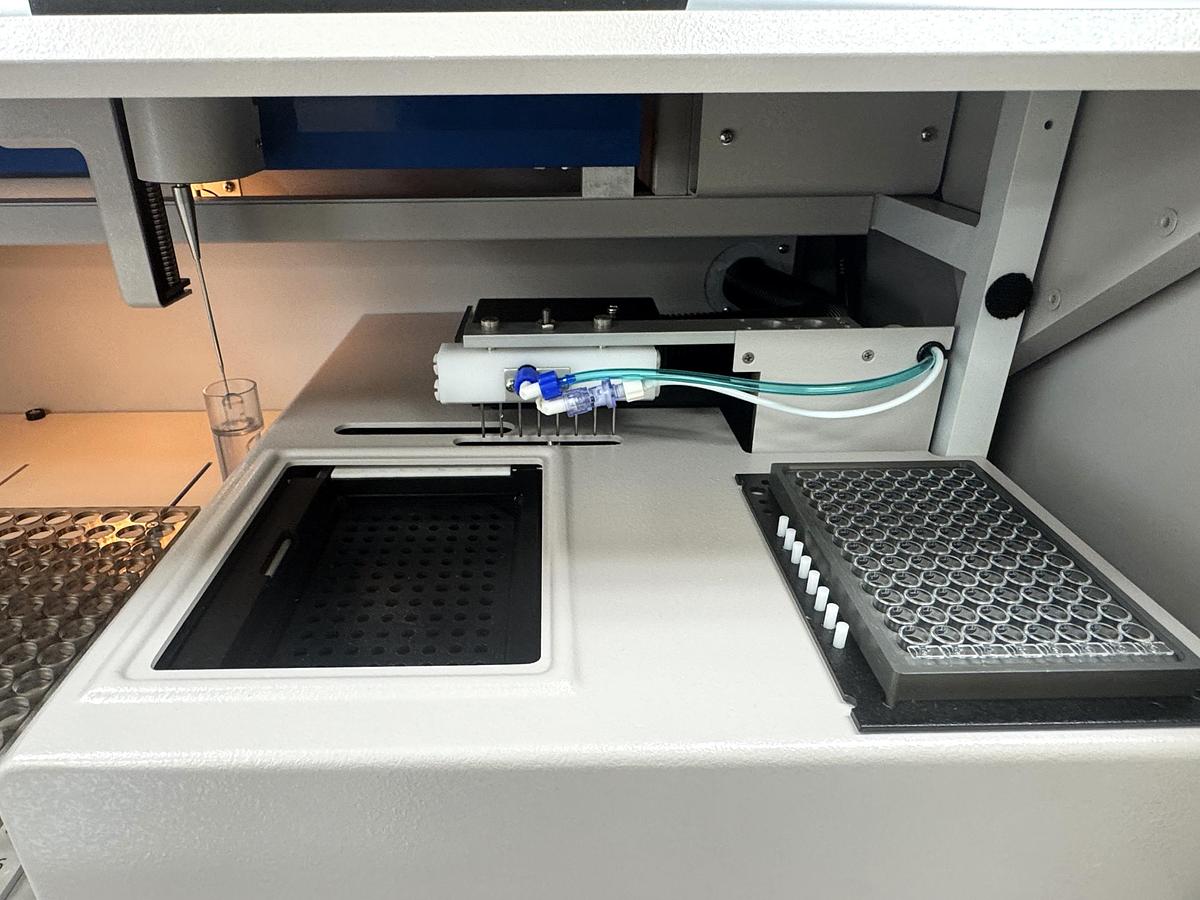

- Eight‑well wash head with level sensing for wash, rinse, and waste bottles
- Self‑monitoring mechanics and optics for continuous validation
- Automatic dilution and retest of over‑range samples
- Integrated LIS and STAT mode for rapid result communication
- Built‑in QC tracking and password protection
- Flexible programming of wash volumes, cycles, and probe cleaning
- Capacity of up to 200 ELISA tests per hour
Applications
- Clinical diagnostics in hospitals
- High‑volume testing in diagnostic laboratories
- Research projects in universities and institutes
- Quality control in blood banks
- Government health agency screening programs
- Private clinic immunoassay services
- Veterinary diagnostic laboratories
- Industrial biomedical research
Why Choose This Product
The Chemwell 2910 combines high throughput with unparalleled flexibility, delivering reliable results while reducing hands‑on time. Its self‑monitoring features and integrated data management ensure compliance and traceability for any laboratory environment.
Mon–Fri 8am–6pm | Sat 9am–3pm
Technical Specifications
| Typical throughput | Up to 200 endpoint reactions per hour, up to 170 kinetic |
| Dimensions | 36.25″ (92.1cm) left to right, 18.75″ (47.6 cm) height, 21.5″ (54.6 cm) front-to-back |
| Capabilities | Dilution, pre-dilution, dispensing single or multiple reagents |
| Probes | 316 stainless steel for maximum reagent compatibility, level sensing |
| Maximum number of specimens | 96 |
| Maximum number of reagents | Typically 27 to 44 or more (you can program reagents to go in the sample rack; assorted replaceable racks and custom-designed racks are available for various bottle sizes) |
| Standard reagent rack | 27 |
| Reaction Vessel | Standard microwells, strips or plates |
Specifications are subject to change without notice. Contact Waxtron Medicals for the most current datasheet.
